Vertical Autoclave Sterilizer Features:
◆ Auto discharge the cool air, and steam discharging automatically after sterilization
◆ Automatically shut off with beep reminding after sterilization
◆ The accident protection system
| Model | Material | Volume | Power Supply | Output power | Dimension of sterilizing chamber | Net weight | Package Size |

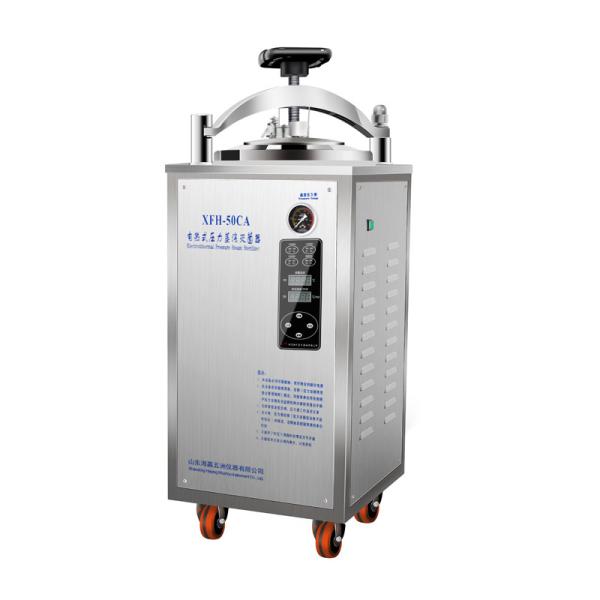

| XFH-50CA | All stainless steel | 50L | 220V | 3.5kW | 340 x 525mm | 58Kg | 570 x 570 x 1300mm |
Vertical autoclave sterilizer use and maintenance instructions:
1. Vertical autoclave sterilizer, the operation staff must be in the correct use of standardized operation, to avoid an accident.
2. should ensure that container of water, high water level can make the wet dressing, and waste of power supply, water level is too low will not work properly.
3. began to heat, must be steam feed valve handle in position, make the cold air inside the container escape, otherwise you will notTo the disinfection effect of the good.
4. after each terminated after disinfection sterilization must shut off the power switch.
5. The solution of disinfection sterilization, the solution should be pumped into the high temperature resistant glass bottles, injection quantity for the bottle of 34 volume advisable, application gauze on the bottle, avoid by all means use a stuffy cork, and the solution bottle placed in a container can hold solution quantity, in case of a one thousand solution bottle burst in the process of disinfection sterilization, and other items.
6. after the termination of disinfection vertical autoclave sterilization, disinfection fungus is a solid objects, but will bleed valve handle in the vent steam, when the pressure gauge pointer back to "0" position, can open the container cover, if disinfection sterilization items solution or medium etc., do not immediately release the steam, solutions in order to avoid boiling overflow, cause an accident. Should be shut off the power, after being pressure gauge pointer back to "0", and open the container cover.
7. sterilizer after the termination of daily use, strike the sewage drainage net within the container, the container and erase scale, improve the quality of disinfection sterilization, as well as energy saving and service life. If the container has more wipe not to scale, can use the following solution cleaning scale. With herself for: 10 kg of water, 1 kg caustic soda, 0.25 kg of kerosene in container, soak about 1 hour, then wash scale, the final rinse off with clear water.
8. sealing washer will use day long aging, affect the sealing effect, should replace the sealing ring at this time.
9. Pressure gauge test at least once a year, if the pressure gauge pointer back to "0", should be professional maintenance or update, otherwise it will affect the disinfection effect of the use of safe.
